Orders Overview
Orders placed with CartThrob can be saved to an Orders weblog. Additionally, purchased Items can be saved to a weblog of their own as well, tied to the purchaser’s member account. This is a great option if you want to associate a member account with a download or other intangible product. Please see the Purchased Items Overview for more details.
Setup and Configuration
Based on your backend settings, order data can be saved to a webblog upon successful checkout.
Weblog Setup
Create the orders weblog. If you used the “Auto-Install Templates” function of the CartThrob extension, your orders weblog should already be correctly configured.
Available Fields
All of the following fields can be mapped to weblog fields in the CartThrob backend. This means that customer checkout data will be automatically stored by CartThrob in the correct weblog field.
Subtotal
Order Items (matrix)
Tax
Shipping
Total
Transaction ID
CC Last Four Digits
Coupon Codes
Shipping Method
Customer Name
Customer Email
Customer Phone
Full Billing Address
Billing First Name
Billing Last Name
Billing Address
Billing Address 2
Billing City
Billing State
Billing Zip
Full Shipping Address
Shipping First Name
Shipping Last Name
Shipping Address
Shipping Address 2
Shipping City
Shipping State
Shipping Zip
Items Custom Weblog Field
Note the items field above. Purchased items that are stored in the Orders weblog are stored as a serialized string of data, containing (at a minimum) entry_id, quantity, and title. CartThrob adds a new custom field type called “CartThrob Order Items” that can be used to automatically display this data in a readable format. When you create your items weblog field, simply select the CartThrob Order Items field.

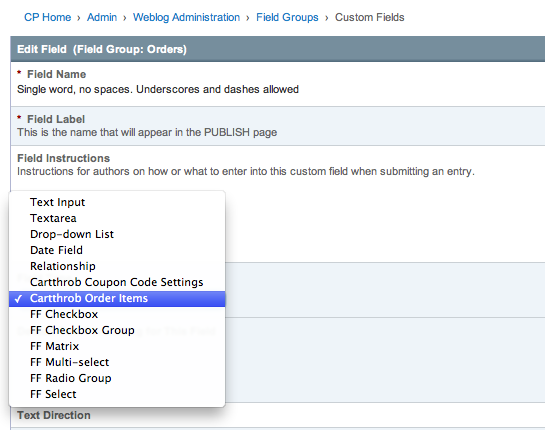

Selecting the CartThrob Order Items custom field

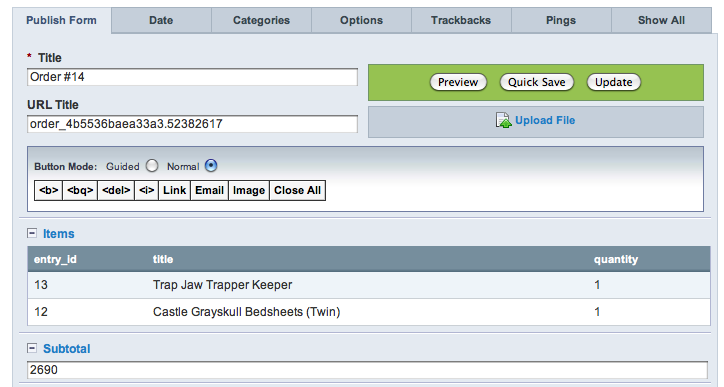

Viewing the CartThrob Order Items custom field.
Advanced Stuff
One really interesting feature of this custom field type is that it can dynamically add and store configured product information. Each new configuration option will be stored in this field, regardless of the name or number of configuration options. In the screenshot below, you’ll see that a size field was added on the fly to the item data field during checkout. For more information about configuration options, see the Add to Cart Form tag documentation.
Using FieldFrame For the Order Items field
If, for some reason you plan to use FF Matrix (version 1) for the order items field, your custom field should have at least the following text fields: a column for ‘entry_id’, ‘quantity’ and ‘title’ (in that order) to correctly display purchased item data. Advanced usage note: FF Matrix is not suitable for dynamically storing configured items like the custom CartThrob Order Items field noted above.
A quickstart video is available on the topic of setting up blogs & configuring the backend if you would like additional details.
Backend Configuration
Configure the CartThrob backend. Go to the admin> utilities> extensions> CartThrob> settings. Click on Order Settings. Once on this page, map the order fields to the fields you just created. A quickstart video is available on this topic.
Site Owner’s Completed Order Report
Most site owners probably want to know how much money they’re making. To display orders, you will need to create a template to do so. For more information about outputting order data in your templates, please review documentation of the Order Items custom weblog field.
If you would like to display order reports templates to your store owners, we currently suggest adding a link to your order template in the store owners control panel. You may also have interest in using the Framed Module to display those reports directly within your control panel. In the future CartThrob will have the option to add an orders template tab in the Control Panel backend, but for now, please use the methods mentioned above.
